DXR dispenser for adhesives and resins

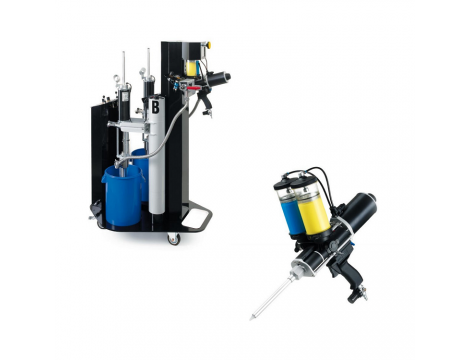

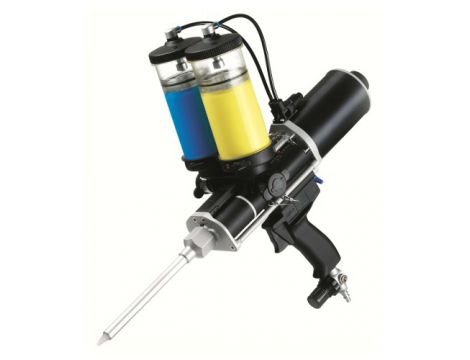

The innovative dosing system DX Dispensing System has been designed for low and medium volume two-component bonding and sealing. The system can be used for a wide range of viscosities. It combines a significant cost reduction thanks to the use of ingredients from large packages with the undisputed advantages of thorough mixing and dosing of a measured portion. The DX dispensing system is an ideal solution for assembly lines and applications that require multiple dispensing points, mobility and reliability, and where cartridge systems are too expensive and the use of a fully integrated system is not justified. The units are rugged, compact, lightweight, ergonomically designed and extremely easy to use. The system includes two units, a DXH dispenser and a DXR filling station. Features: Low production costs Use of multipacks Quick refilling of dispenser tanks One DXR filling station supports multiple DXH dispensers Low operational requirements Ease of use Mobility and flexibility Patented mixing interface eliminates cross contamination Easy and safe refilling Closed system, no open tanks No cleaning required Only compressed air supply air No complicated control device Reproducible process Possibility to set the dosing mode Permanent adjustment of the batch volume Reproducible results for mixing and dosing Technical data of DXH dispensers: Pressure piston pump Maximum dosing pressure: 36 bar (530 psi) Tank capacity - 2 liters, separated depending on the proportion Density range: low to high Weight DXH3 - 2.4 kg Weight DXH4 - 3.0 kg Mixer sizes: DN 6, 8, 10 and 13 mm, with an adapter DN 3, 4, 5, 7 mm Available dosing ratio 1: 1 1.5: 1 2: 1 4: 1 10: 1 Maximum capacity per cycle (ml) DXH3 26 27 27 25 25 Maximum capacity per cycle (ml) DXH3 53 50 51 53 47 Technical data of DXR filling station Transfer pump Piston type Volume per 220 ml Bulk packaging Standard, from 20 l bucket for 200 l barrel. Air supply 6 bar, dry, oil-free (ISO85730 Size From 1000x790x148 mm to 2000x1500x1485 mm Weight From 185 to 400 kg More information in the technical data sheets. The proportions are adjusted individually to the customer's needs. Custom-made product for individual pricing depending on the glue used and the performance that is needed.
