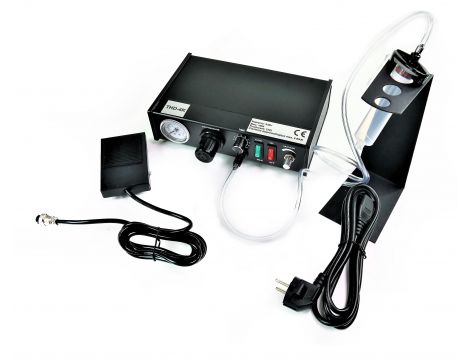

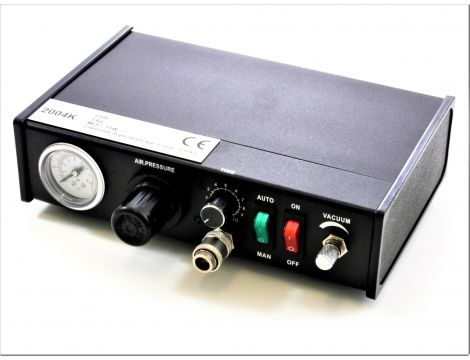

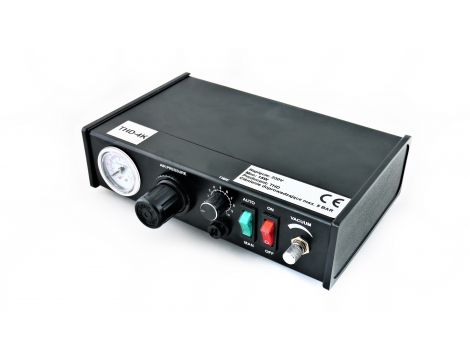

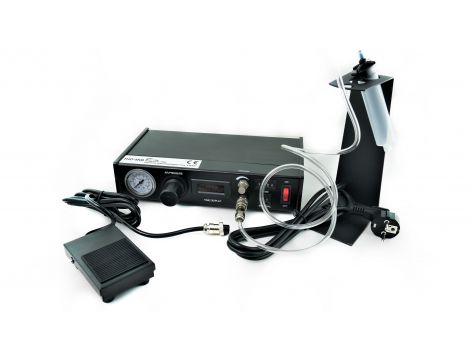

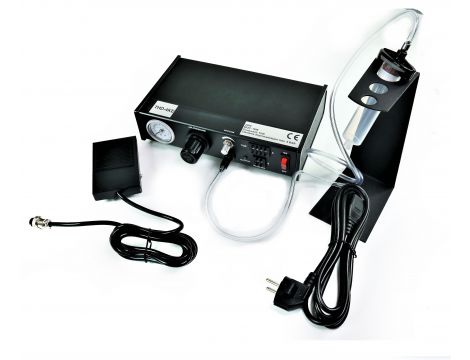

Solder paste, glue, aggressive liquids and solvents dispenser. Dosing is done with a 5, 10, 30 and 50 ml or even 500 ml dosing tube, which already contains the product. We can fill empty industrial syringes ourselves. The most popular are 30 ml. syringes that are included with the adapter for connecting to the dispenser. Remember that syringes 5 and 10 ml. have a different input and you need to buy an additional adapter. For tubes of 100, 200, 300 and 500 ml. there is a standard 6mm tubing. He will select the appropriate dispenser depending on what options and accuracy you need. Below is a table and a short description: 1. THD-4K - the basic model for manual / foot dispensing and portions / valve opening time - set the accuracy of 0.01 on the potentiometer. 2. THD-4KE - the model most often chosen due to the fact that it has a dosing portion setting, as well as repeatability set on a dial potentiometer, accuracy 0.01. 3. THD-4KB - the most accurate model of dispensers, additionally equipped with a display showing the portions that we set and the accuracy 10 times greater than the previous ones, i.e. 0.001. It should be remembered that with the increase of the dosing tube, a certain inertia of the plunger increases, so if you want to prevent this, you can buy a j-90, j-120 or j-180 dosing valve for these controllers to apply glue on the surfaces even more accurately, especially with 300 tubes. and 500 ml. We use these devices as: solder paste dispenser soldering fluxes single-component adhesives (anaerobic, UV, cyanoacrylate, etc.) adhesives and two-component resins (after mixing, we put them into a tube and we have time to apply the same working time), acid solvents and other liquids, which we can repack into tubes We provide appropriate tips for repacking products from 300ml silicone tubes and liquids from cans and buckets. housed in our pressure vessels. In addition to the THD dispenser, the set includes: 1. tube stand 2. power cord 3. foot switch (pedal) 4. hose connecting the dispenser with a 30-55 ml tube Compare with other models
